Weifang Jinmeng Machinery Manufacturing Co., Ltd. is a professional manufacturer of cutter suction dredgers, jet suction sand dredgers, and various sand and gold extraction equipment.
Inquire
Contact us

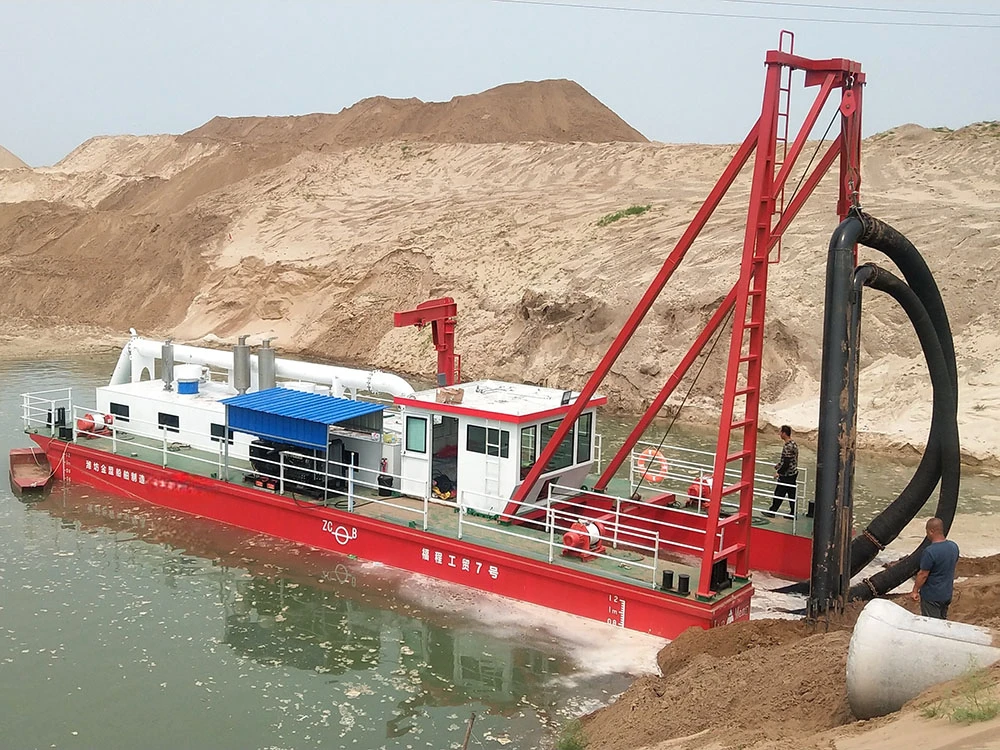

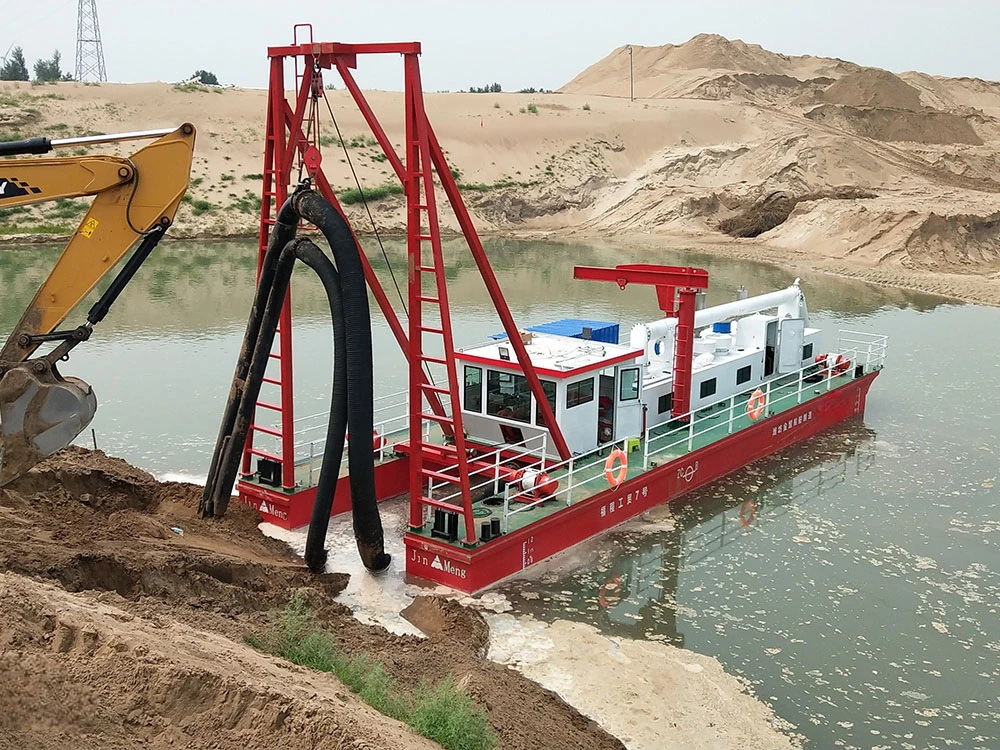

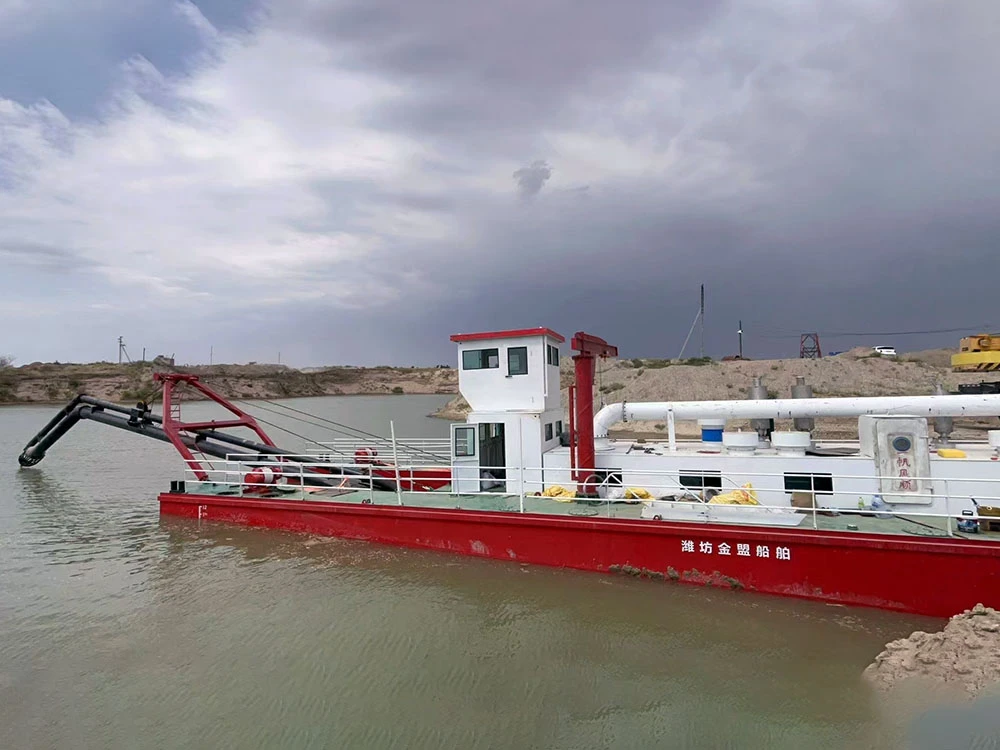

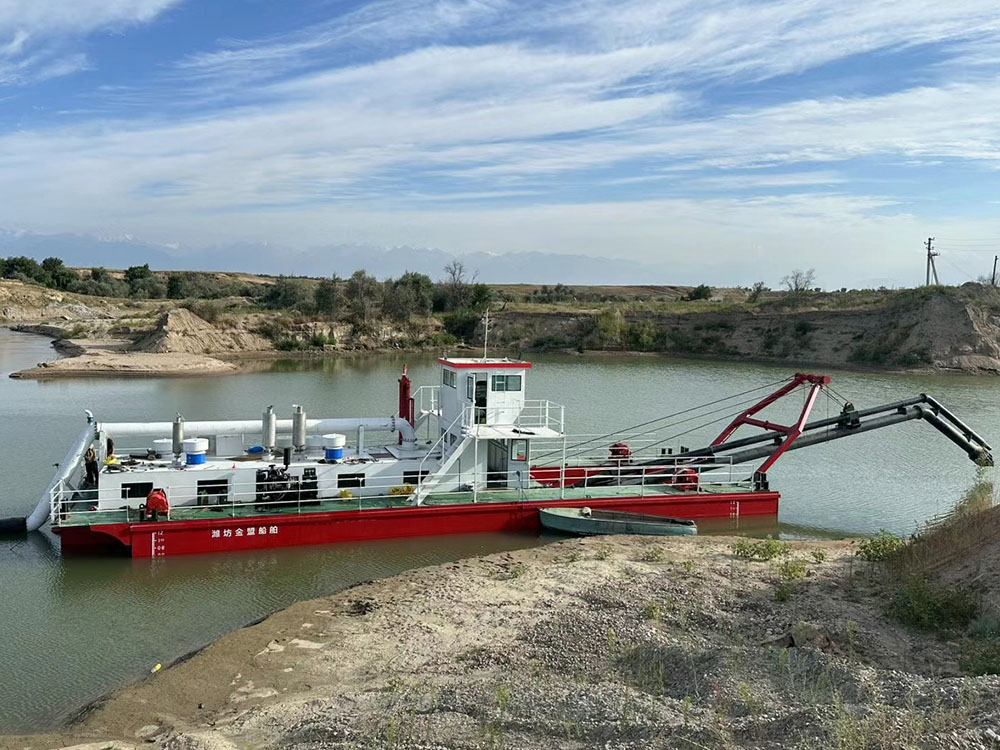

14 inch jet suction dredger
型号6 inch8 inch10 inch12inch14 inch16 inch

Solid production40m³/h120m³/h180m³/h280m³/h400m³/h520m³/h

Hourly water flow rate150m³/h600m³/h900m³/h1400m³/h2000m³/h2600m³/h

Dig depth（Support    customization）1-10m1-10m1-15m1-15m1-15m1-20m

Conveying distance100m500m1500m1500m2000m2000m

Installed power（WeiChai    Engine）173kw230kw+60kw294kw+122kw456kw+122kw+75kw735kw+230kw+100kw882kw+230kw+100kw

Oil consumption25L/h40L/h60L/h90L/h150L/h170L/h

Hull    size
7*2.2*1.3m10*4.2*1.3m11.8*4.2*1.3m14*4.2*1.5m16*4.2*1.5m18*6.3*1.8m

Dredging    depth
10m10m15m15m15m20m

Quantity of cubic meters//
//300 cubic meters

Mode of transportOne 40 foot containersOne 40 foot containersOne 40 foot containersTwo 40 foot containersTwo 40 foot containersBulk carrier transportation

Remark1.The hull    size in the table is the jet suction dredger with a rubber tube    structure;
     2.The greater the dredging depth, the longer the hull of the dredger;
     3.The hull dimensions of the dredger indicating its current dredging    capacity;
     4.The brand of the engine can choose Weichai or Cummins;
     5.If the sand layer thickness is within seven meters, it is recommended to    choose a model within 12 inches;
     If the sand layer is more than seven meters thick, you can choose a model    with a screen size of 12 inches or more;
     If the water flow is fast, it is    necessary to choose a jet-suction dredger with an iron pipe structure.

微信图片_20240817151120


微信图片_20240711110923


微信图片_20240817151155



Company company are based on scientific innovation, gravity separation technology as the core, set up thagold re-election, institute of technology, and with the Shandong gold institute, ChangChun gold researchinstitute, Shenyang institute of gold, Sichuan gold institute ect .we are recommended as placer gold machingcompany by Shandong institute .Company's gravity gold machines won seven patents and we passed thelS09001 quality system certification.
